Project Goals:
+Update the entry level treadmill for Horizon to align with new Horizon brand language.
+Improve useability and features from previous generation
+Keep costs down to hold price point at retail
Responsibilities:

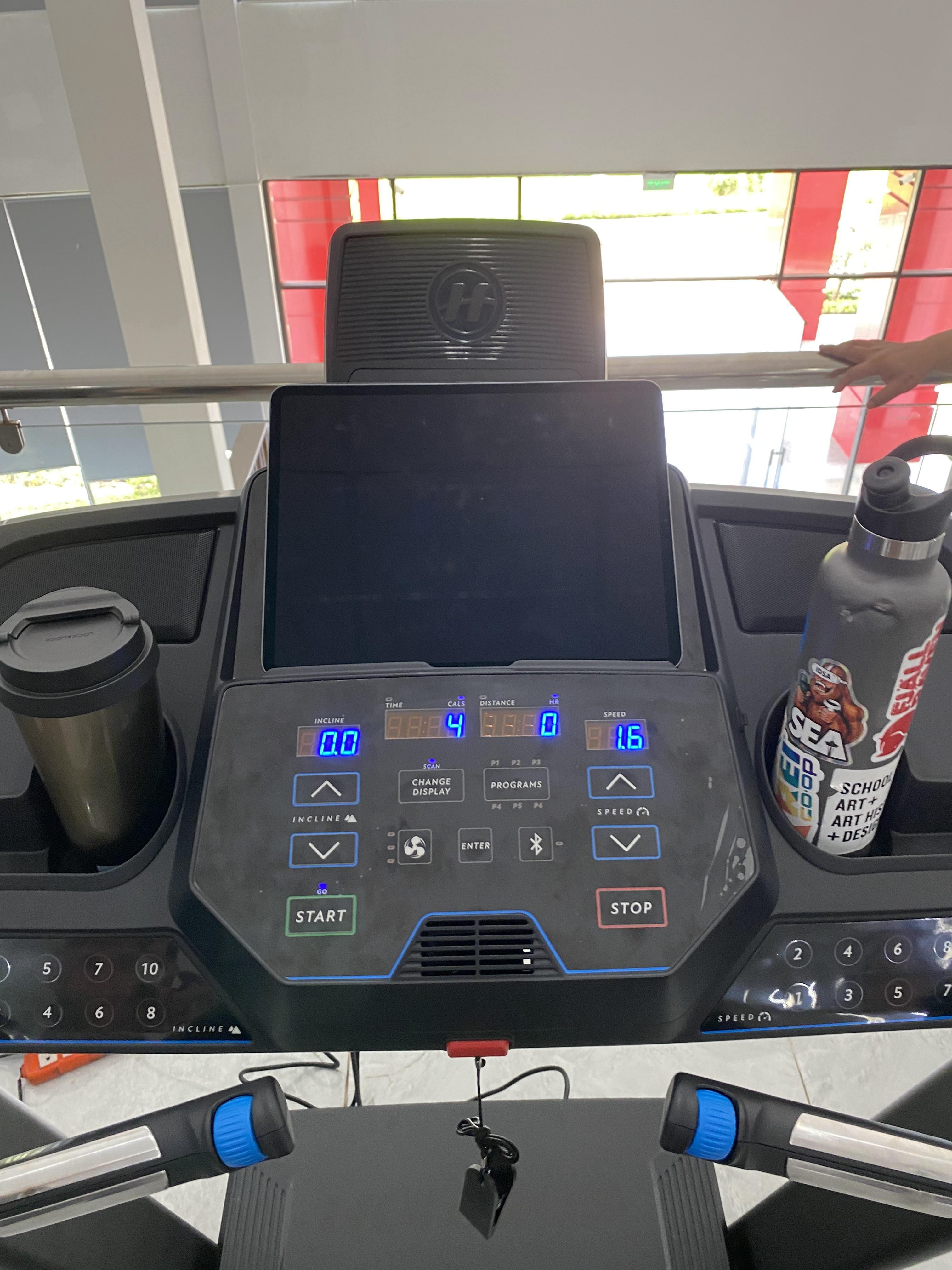

+Redesign of control console and running deck covers.
+Update physical UI
+Product Graphics
+Owner's Manual

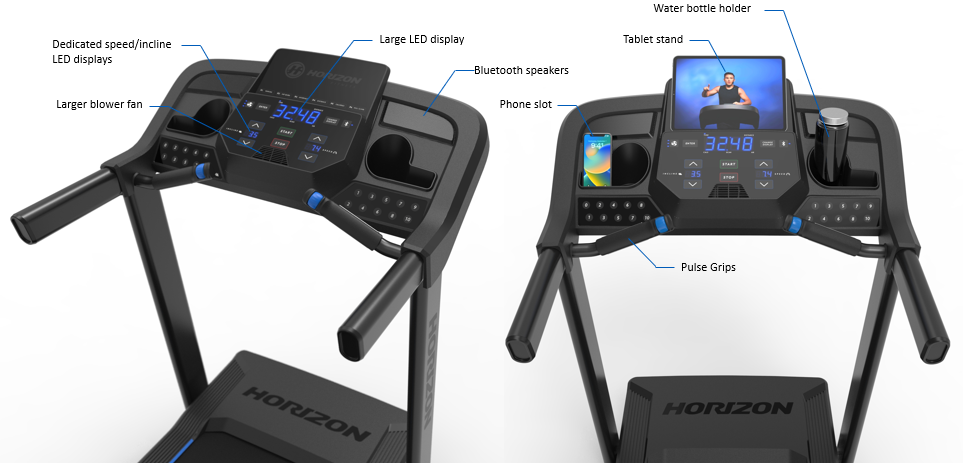

Improvements

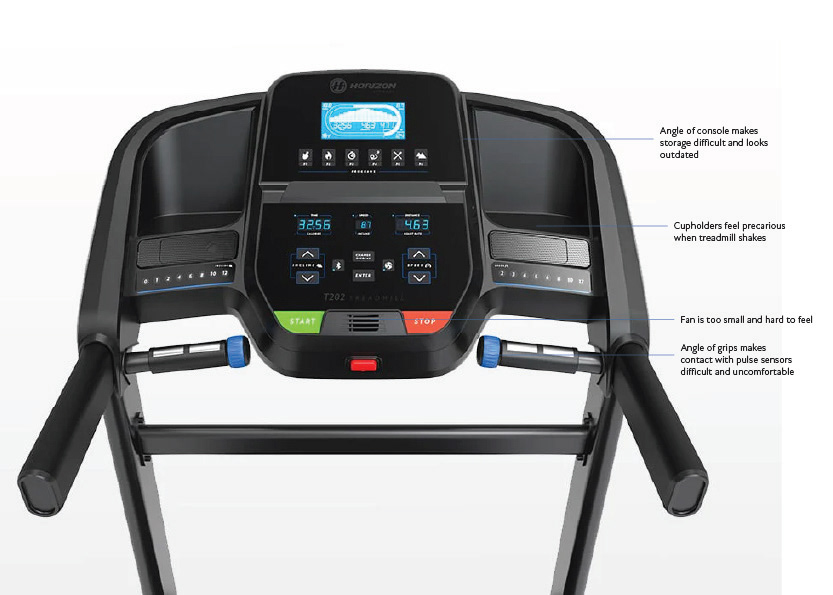

A big part of this refresh was to make functional improvements based on feedback gathered from the previous generation.

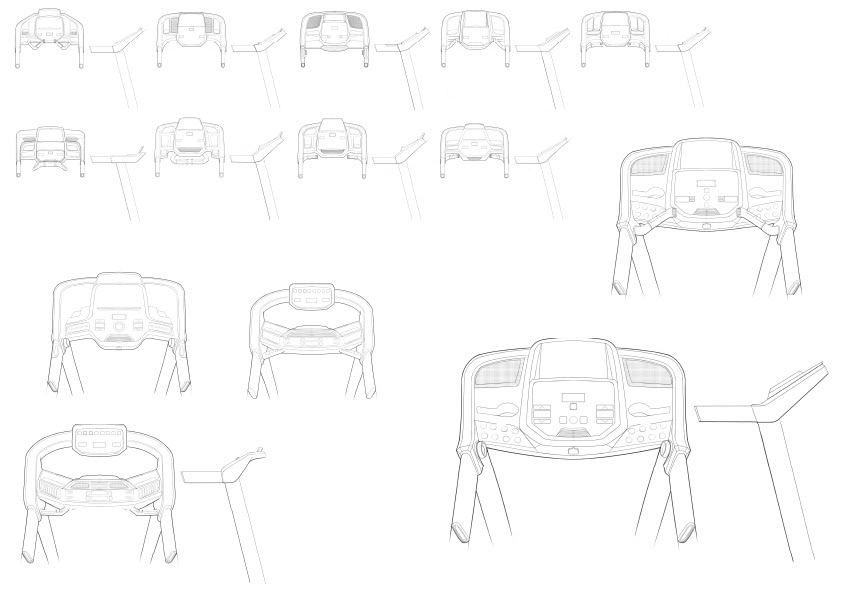

Sketch Concepts

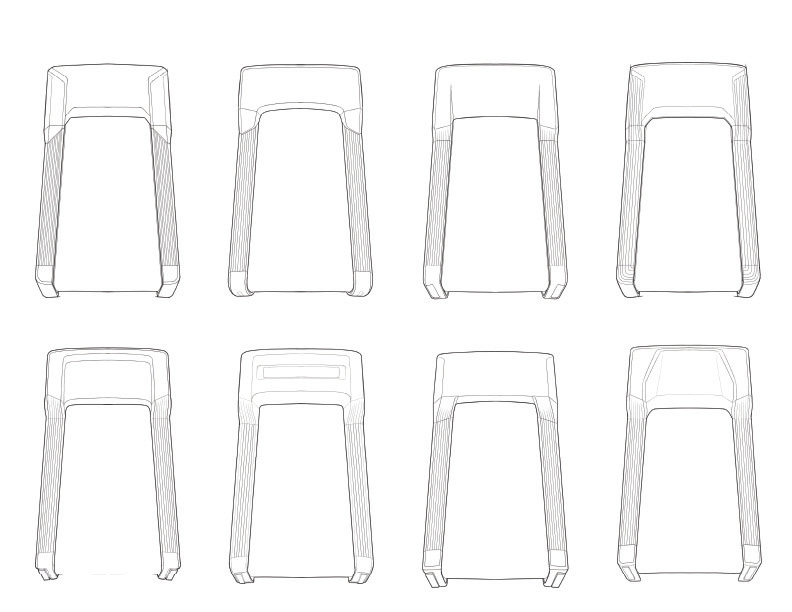

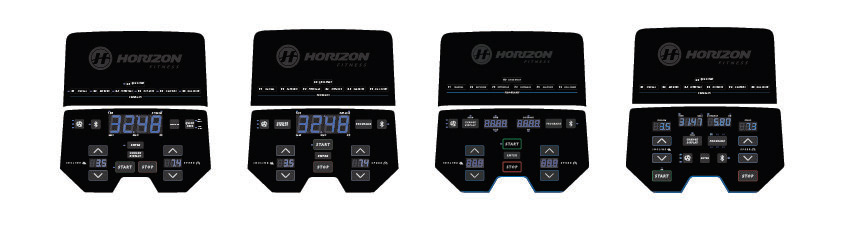

Console concepts
Lower Plastics concepts

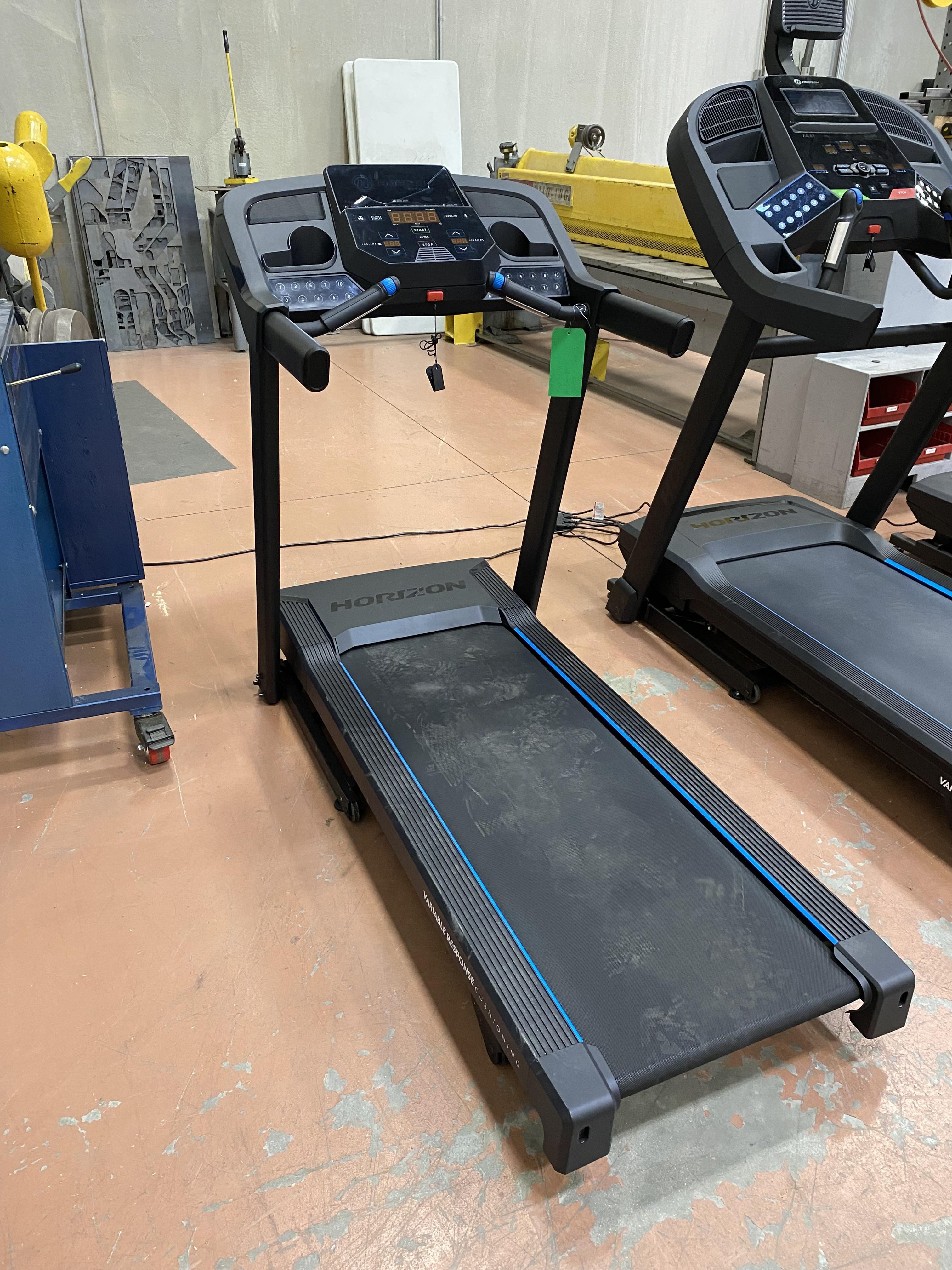

Refined concept used for initial factory samples.

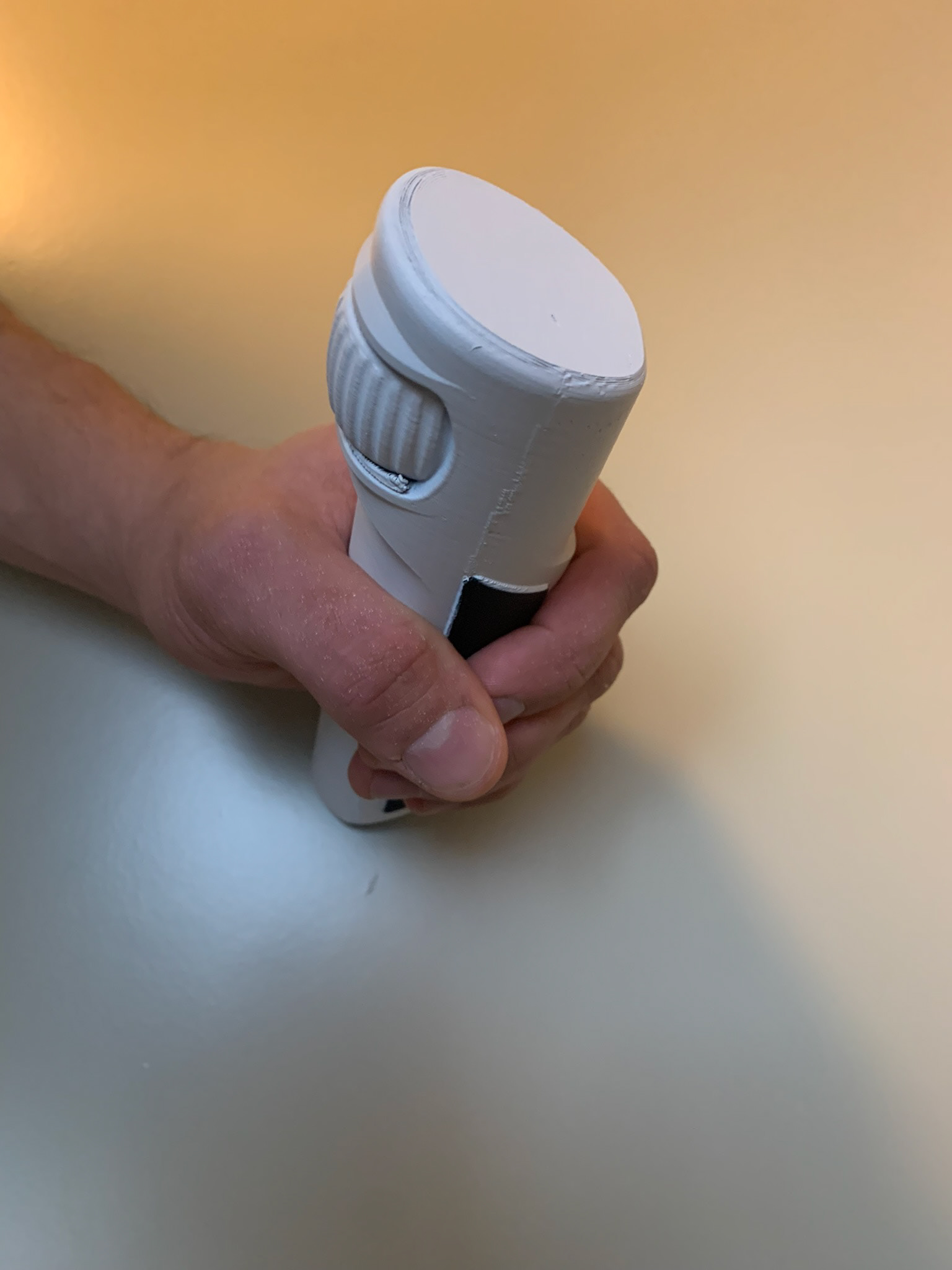

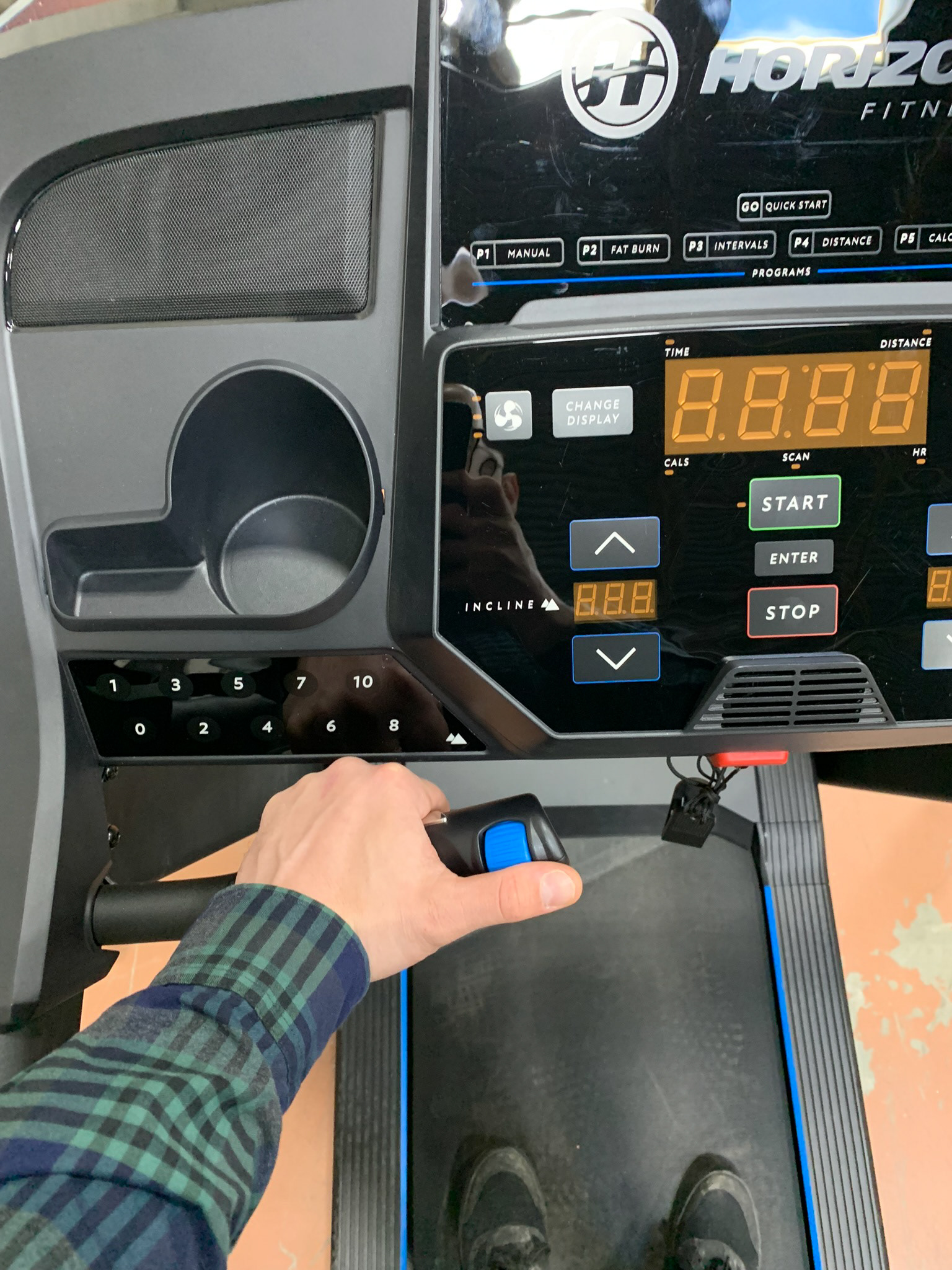

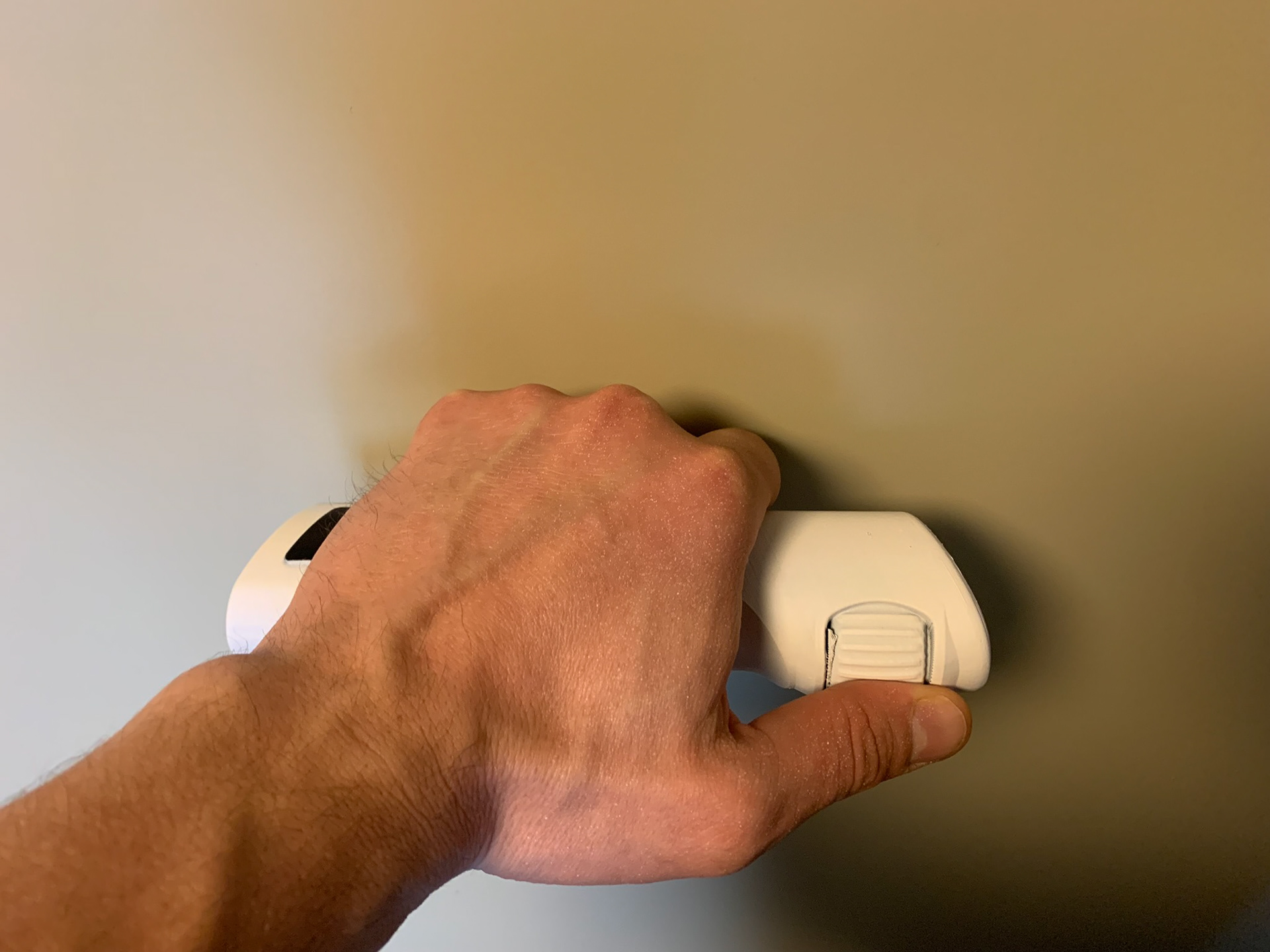

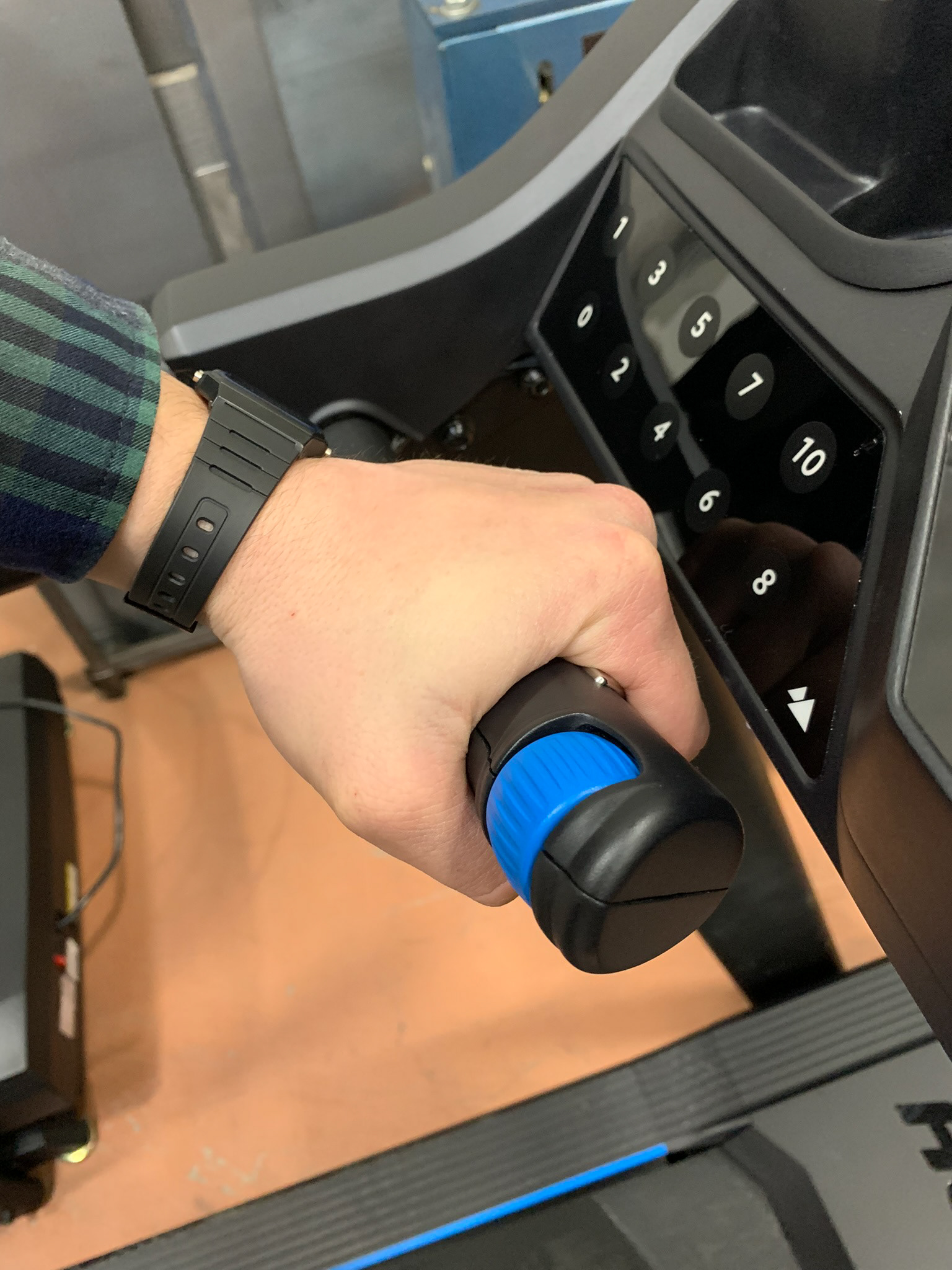

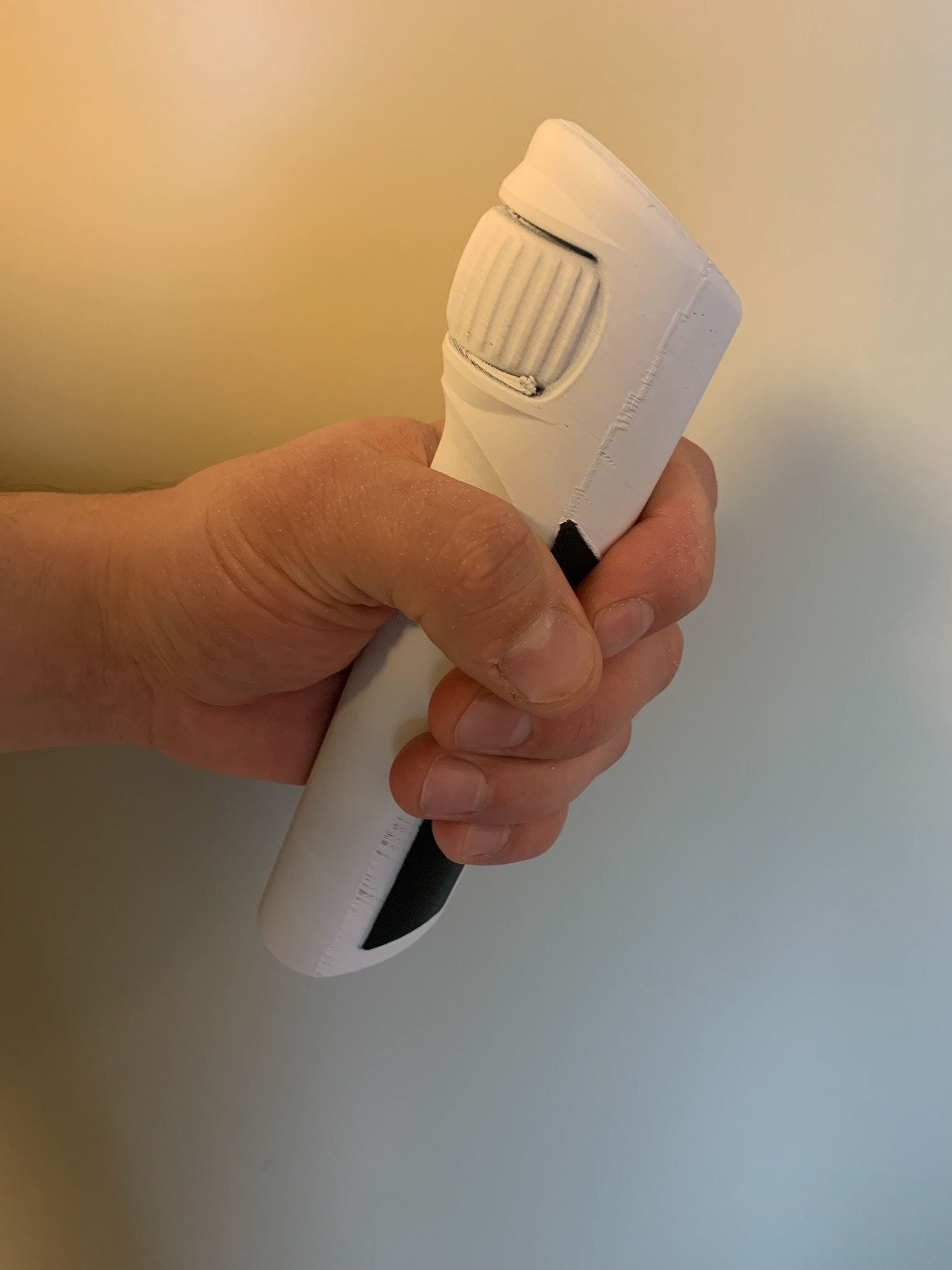

Grip design was handled by a fellow designer. I assisted with making and evaluating 3D printed prototypes

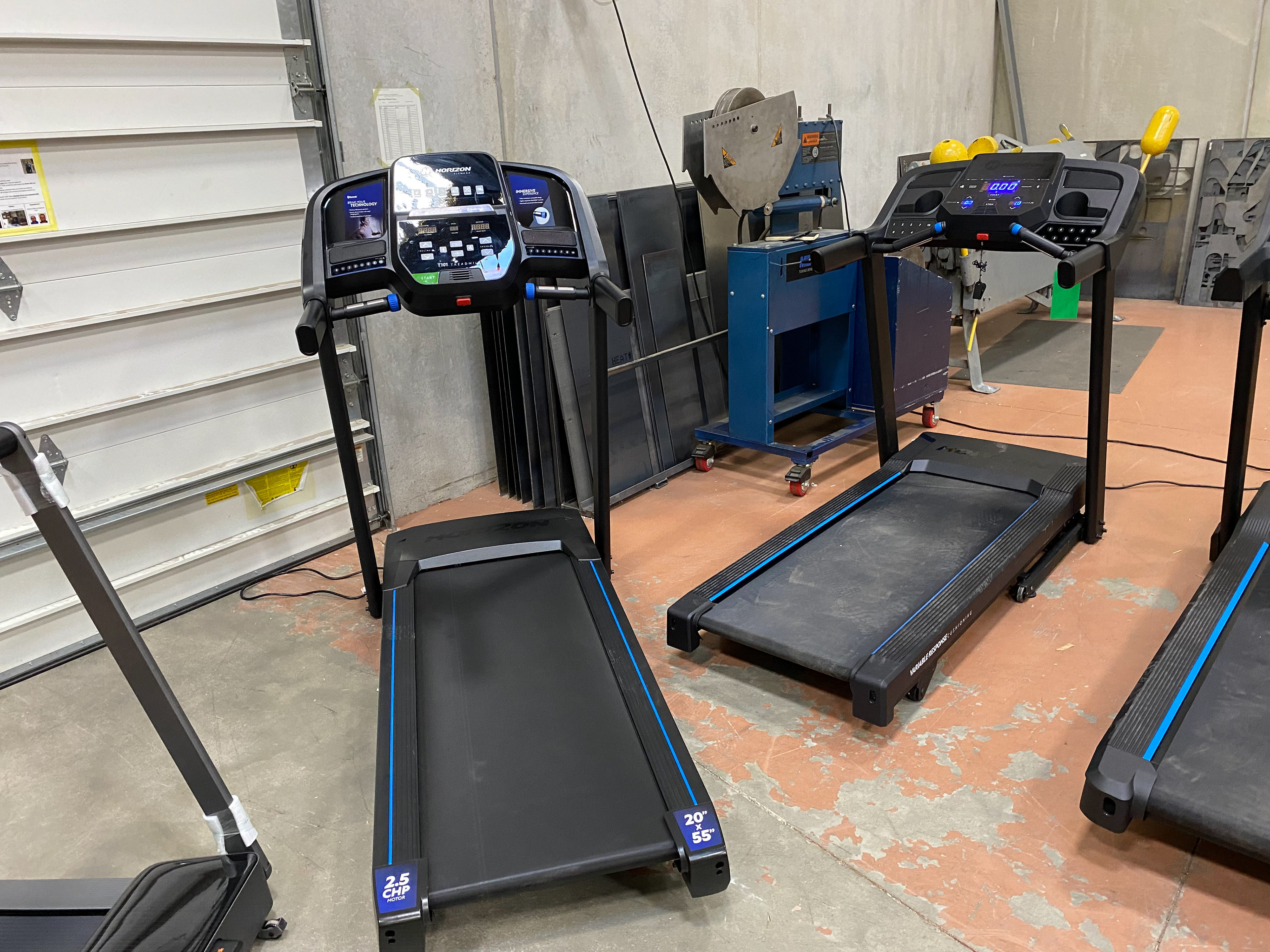

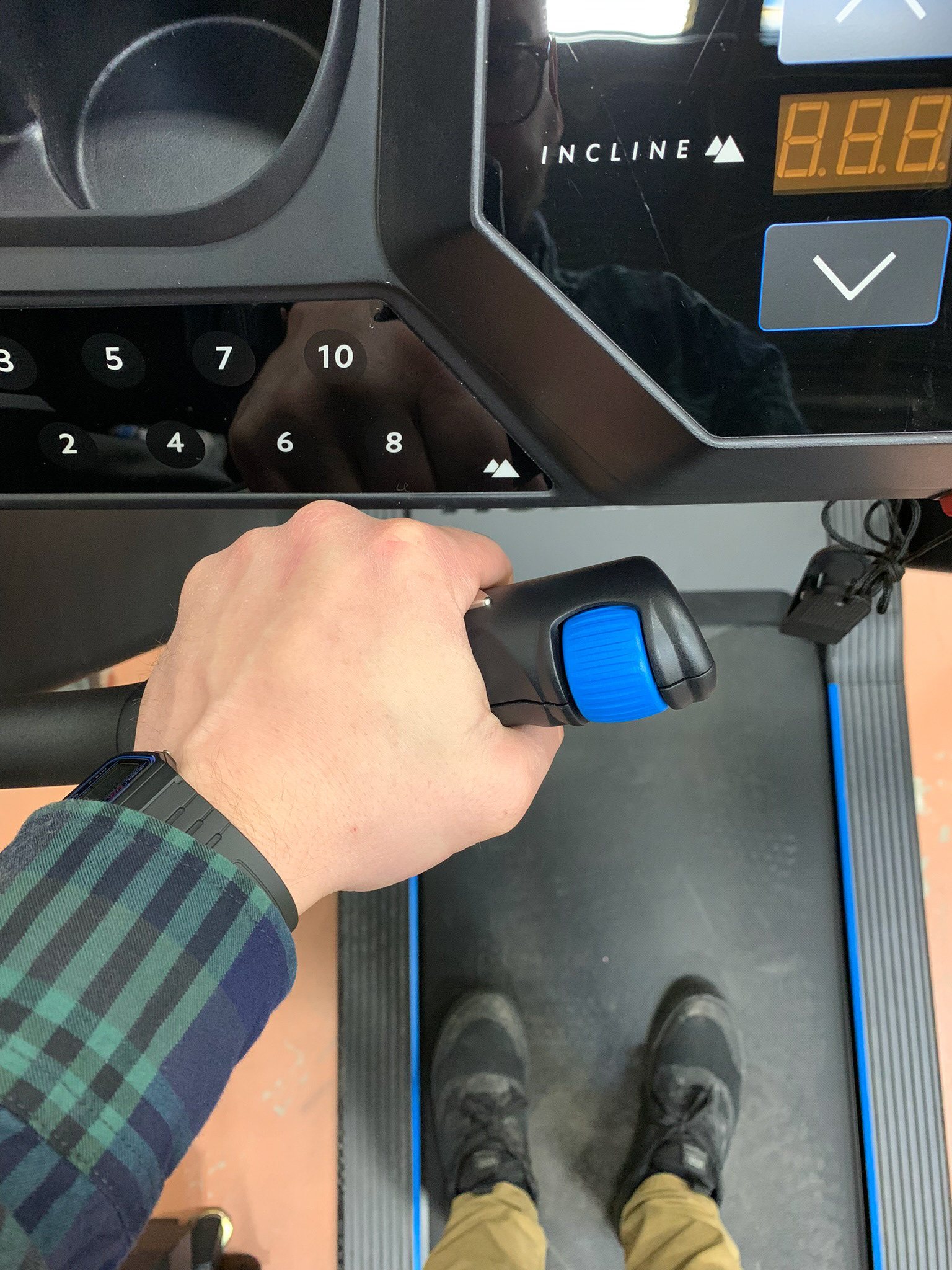

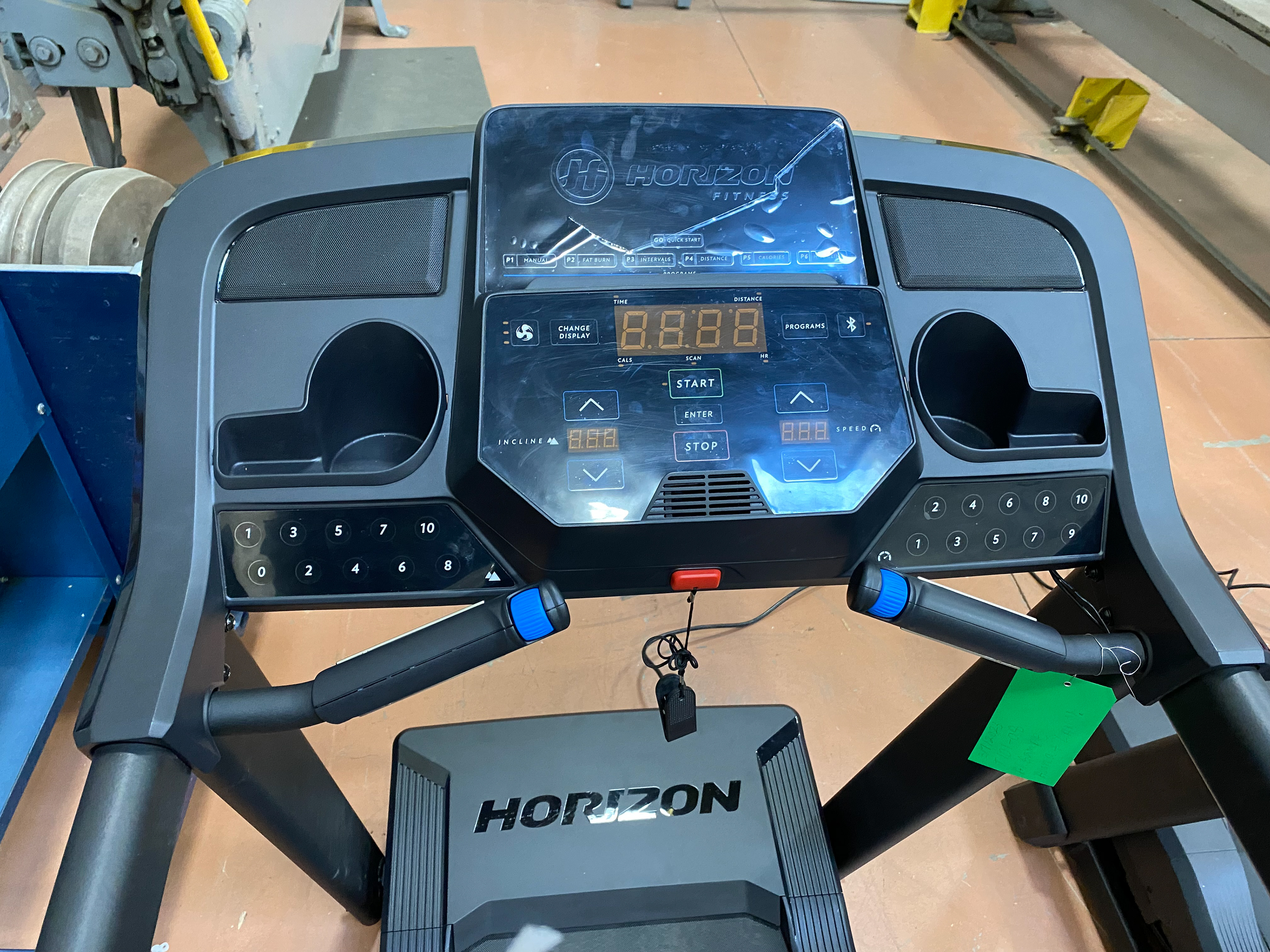

Factory samples were evaluated against past and current Horizon products to makes sure products fit within the family. Features like grips were further evaluated with functional samples to verify ergonomics.
